Un equipo de chorro universal IC 310 S

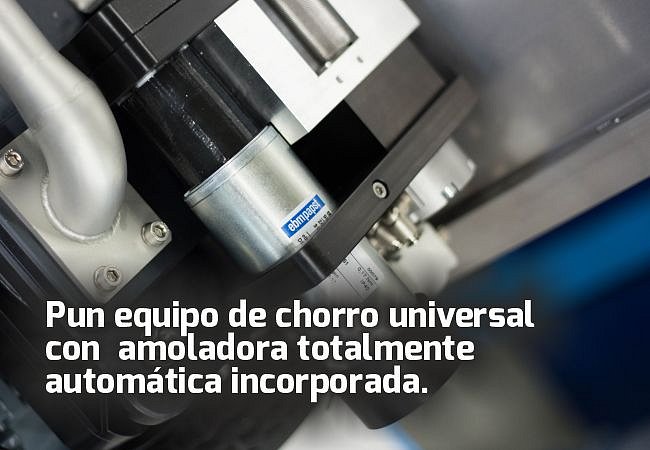

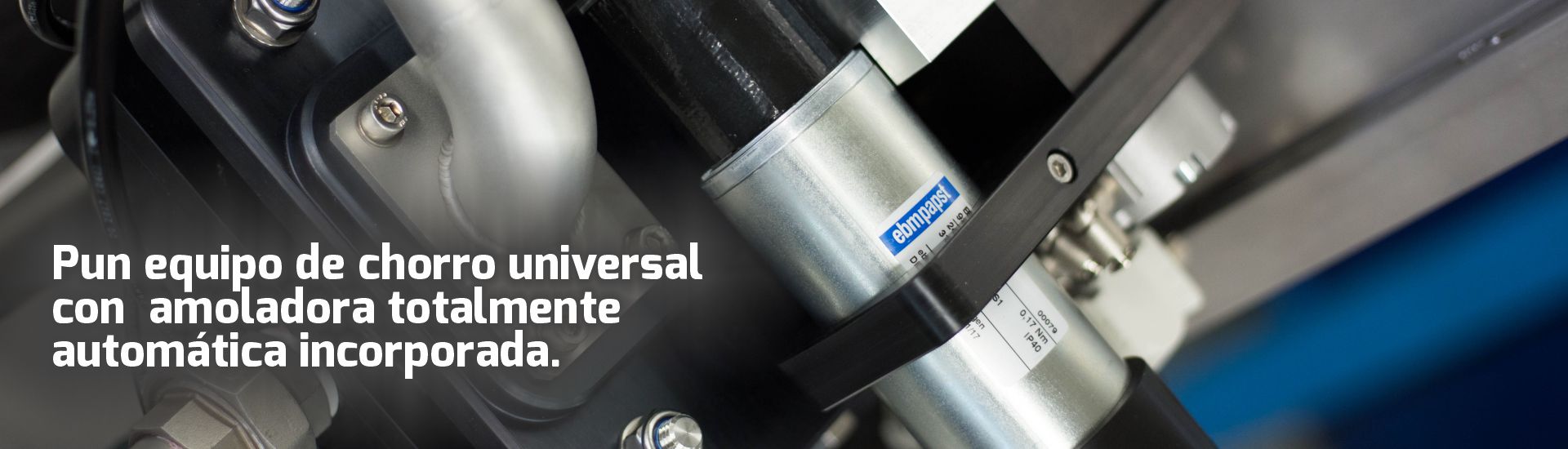

Un equipo de chorro universal con amoladora totalmente automática incorporada.



Parametrós

Material

Acero inoxidable

Peso

73 kg

Capacidad

10 kg

Presión operacional

1-16 bar

Characteristics

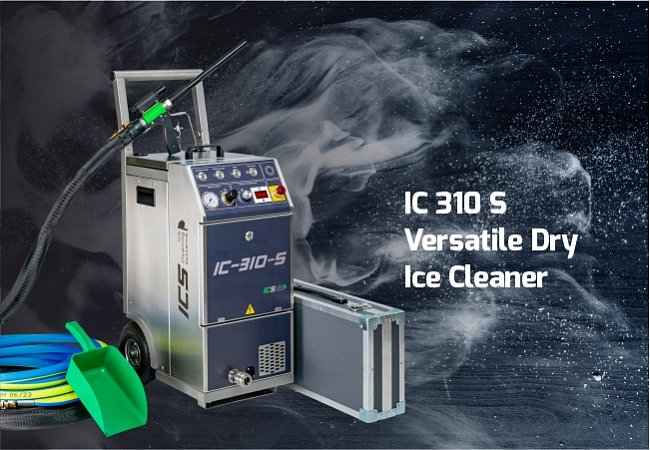

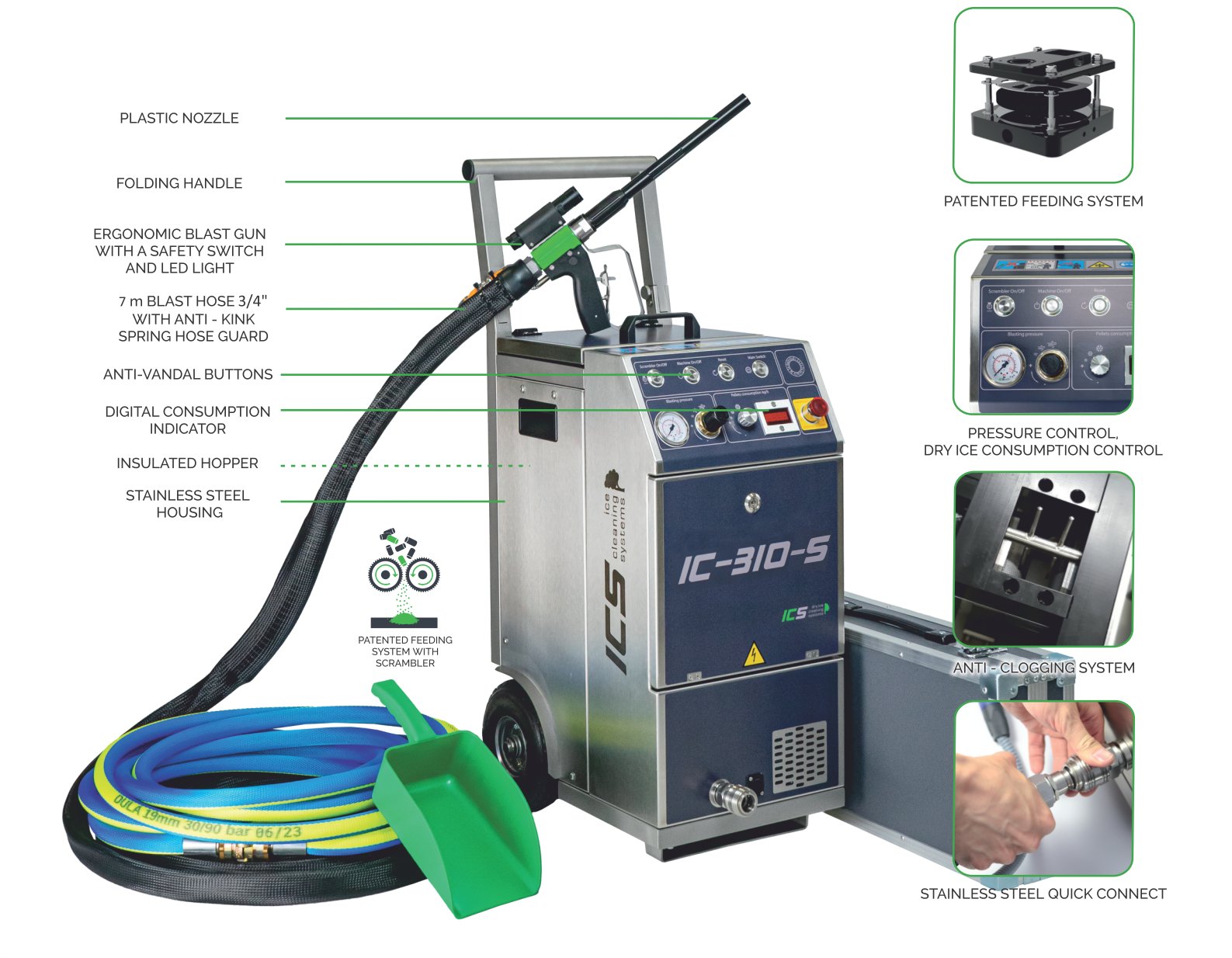

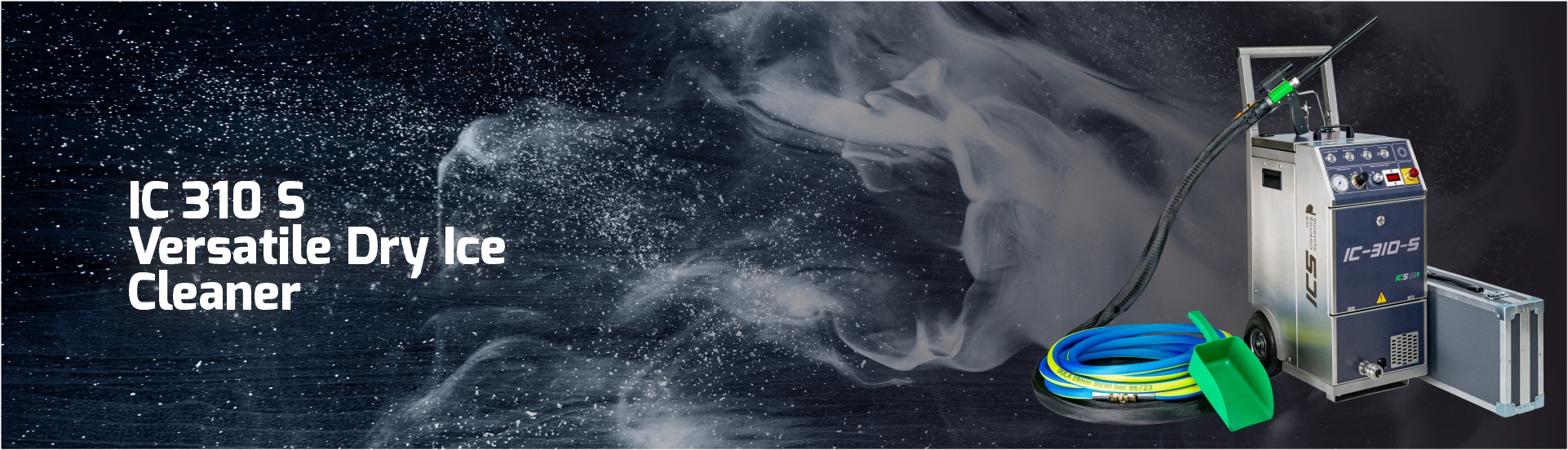

The professional dry ice blaster IC310 S is our most powerful machine and covers most cleaning applications. The patented pellet grinding system produces very small particles that can remove dirt from highly sensitive surfaces such as high-gloss moulds, pneumatic and electric lines, machine control panels, or car interiors.

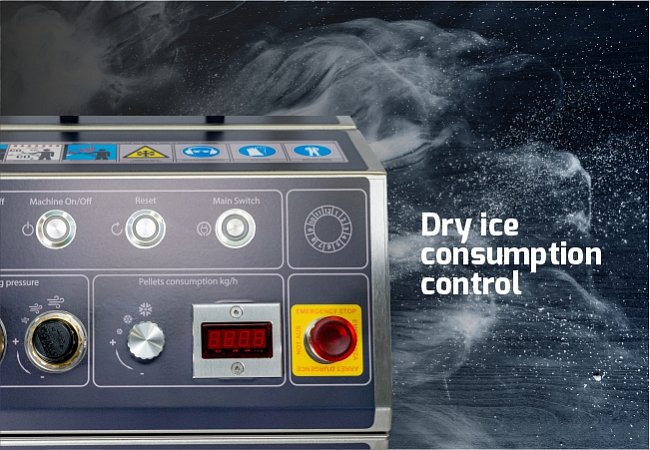

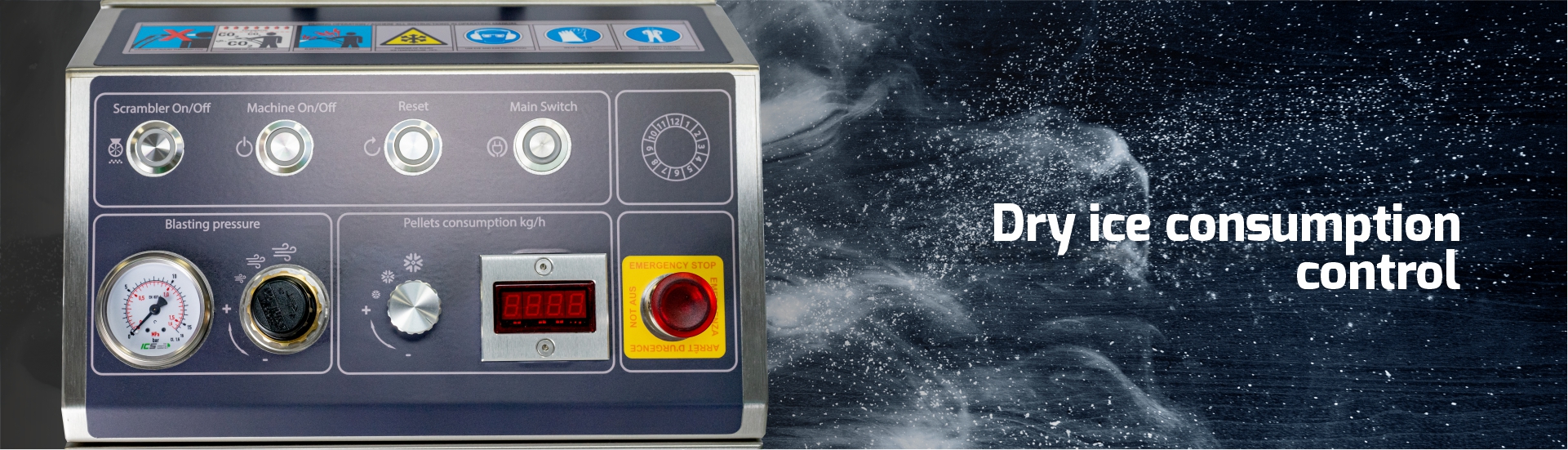

You can choose between microparticle cleaning of delicate surfaces and the standard 3 mm pellet mode of heavier soiling by pressing Switch to a single button on the control panel.

The ingenious design of the pipe and hose system prevents the breakage of pellets by the airjet. The jet nozzles are shaped to increase the speed of the pellets before hitting the  cleaned surface.

The stainless steel frame and the housing of the machine guarantee a long service life. The machine requires minimum maintenance costs even in the most difficult operating conditions.

With its sophisticated design and outstanding technical parameters, you can set yourself apart from the competition with the Dry Ice Blaster IC 310 S. If you are looking for versatility, power and effectiveness combined in one machine, it is IC 310 S ready to tackle any cleaning challenge.


IC 310S


IC 310S PLUS


Examples of use




For Download

Dimensions
Consumption
Weight
Length: 565 mm
Dry ice: 0-100 kg/h
Empty machine: 73 kg
Width: 387 mm
Compressed air: 1,0-12,0 m³/min. (35,3-424 CFM)
(without the hose)
Height: 795 mm (1007 with a handle)
depending on the nozzle type




Operating pressure
Material
Hopper capacity
1-16 bar (14,5 - 232 PSI)
stainless steel
10 kg



Service supply connections:
Noise Level

Compressed air : DIN 3489 claw coupling
60 – 120 dB(A) depending on the blasting

Electrical: 100 – 240 V, 50 – 60 Hz, CEE
pressure, nozzle type

7/4, Type F
